MEP Shop Drawings: What They Include and Why BIM Helps

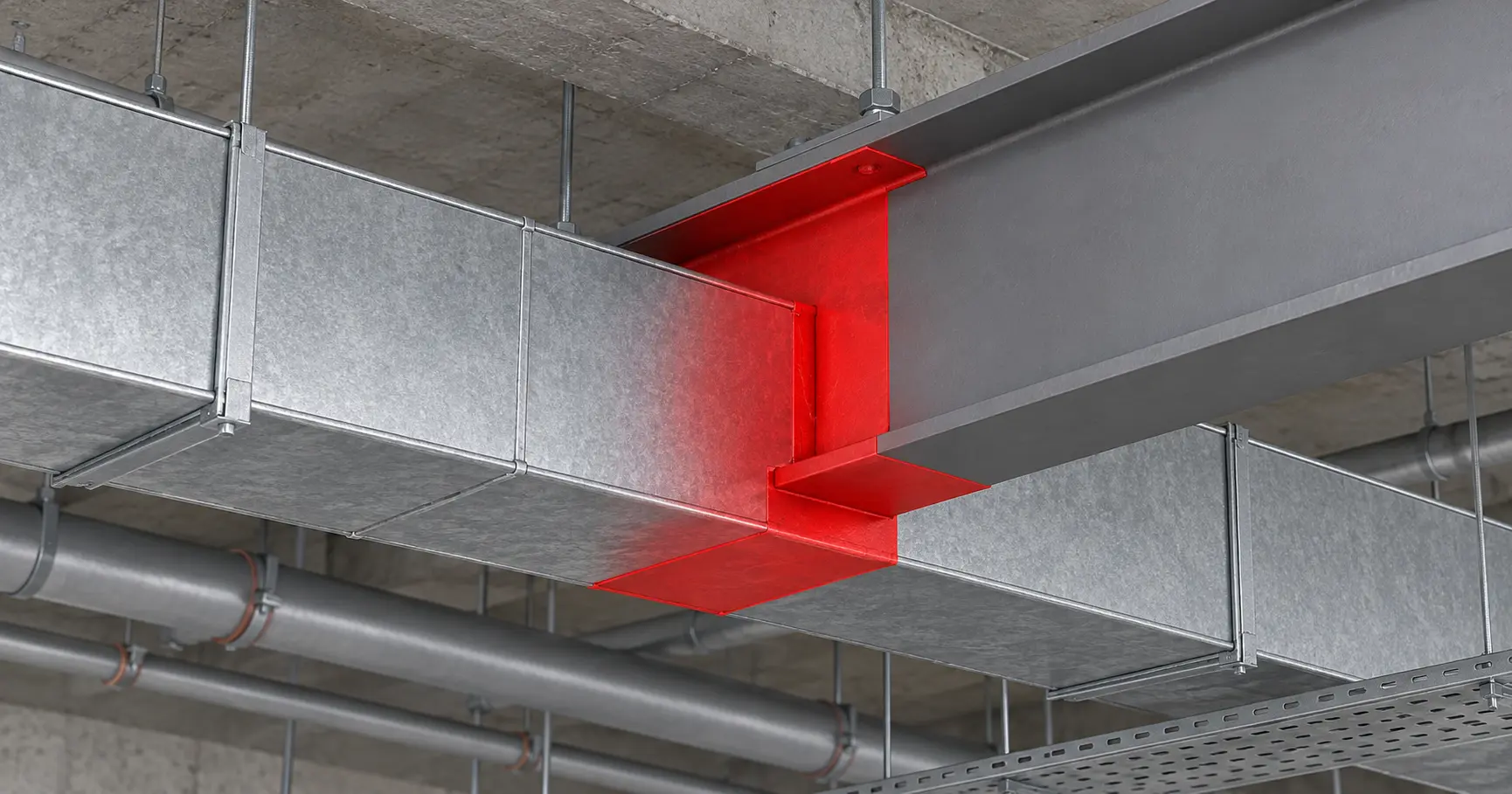

Design drawings show what a building should do. Shop drawings show how it will actually be built. For mechanical, electrical and plumbing work, that gap is where most site delays begin: a duct that does not fit above a beam, a pipe that blocks a door, a cable tray that crosses a sprinkler main.

This guide explains what MEP shop drawings are, what a good set includes, and why drawings produced from a coordinated BIM model are more reliable than drawings produced by hand.

What Are MEP Shop Drawings?

MEP shop drawings are detailed installation drawings prepared by the contractor or a specialist team. They take the design intent and add the exact routes, sizes, elevations, supports and connection points an installer needs. They are usually submitted to the design team for review before anything is fabricated or installed.

In simple terms, the design drawing says "run a duct here". The shop drawing says exactly where, at what height, how it is supported and how it clears everything around it.

What a Good MEP Shop Drawing Set Includes

Plans for each system and each floor, with clear tags and sizes.
Sections and elevations at tight spots such as risers, ceiling voids and plant rooms.
Dimensions and heights measured to fixed reference points so installers do not guess.
Equipment locations with clearance and service access shown.
Hangers, supports and sleeves, including penetrations through walls and slabs.
Coordination notes that show where each system was moved to avoid another trade.
A drawing register and revision log so the site team always builds from the latest issue.

Why Hand-Drawn Shop Drawings Go Wrong

When each trade draws its own 2D shop drawings, coordination happens by laying sheets over each other and hoping nothing was missed. The usual problems are:

Clashes that only show up on site, after material has been cut or installed.
Drawings that fall out of date when the architect or structural engineer changes something.
Inconsistent levels of detail between trades.
Long review cycles, because the design team has to find the conflicts themselves.

Each of these costs rework, and rework is paid for twice: once for the materials wasted and again for the time lost.

https://www.bim365.in/service

https://bim365.in/feature

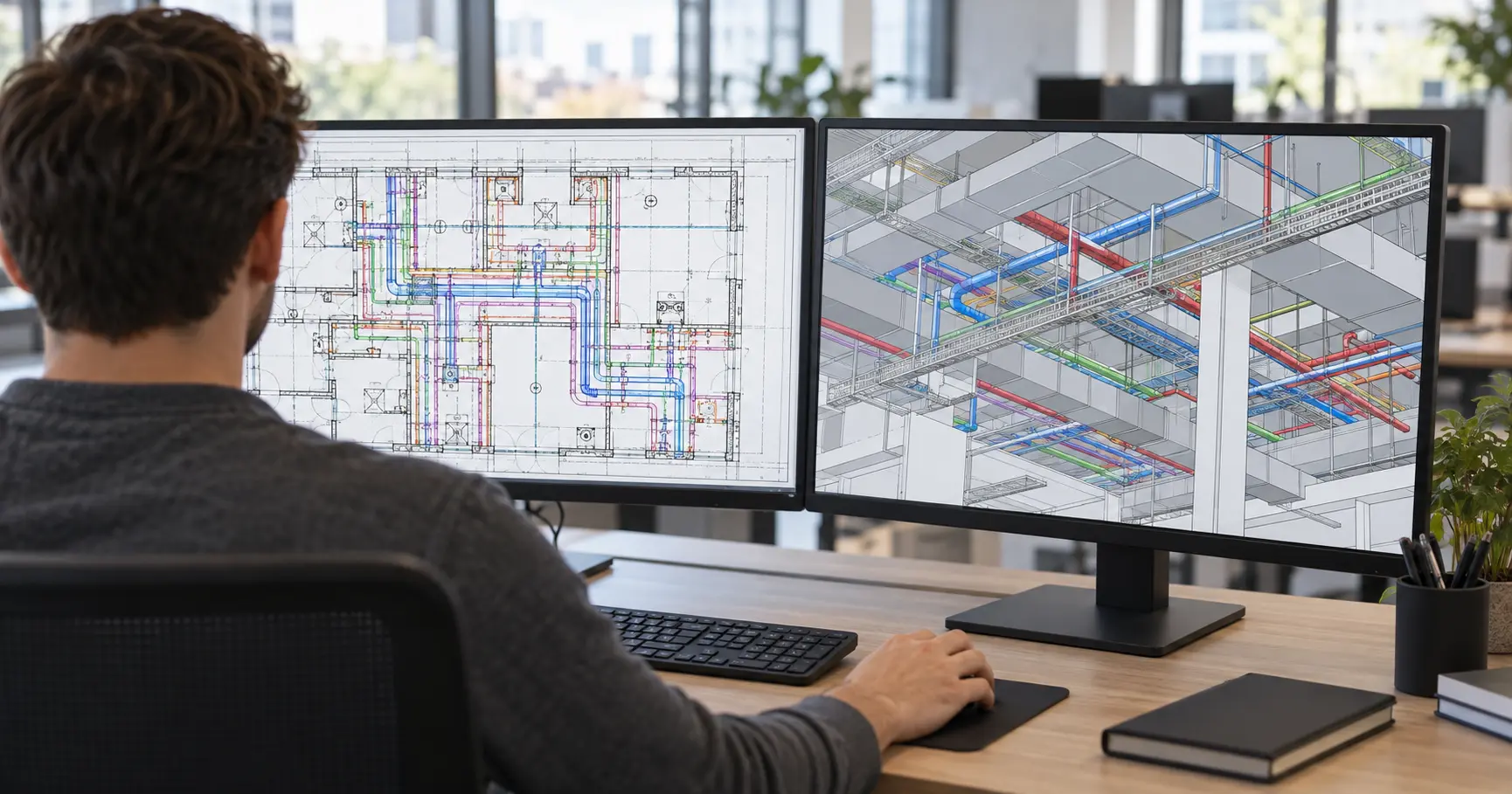

When shop drawings are generated from a coordinated 3D model, the geometry is checked before the drawing is made. The drawing becomes a view of a model that already works.

Here is how the process runs:

1. Collect the inputs. We start with the design drawings, the architectural and structural models and the project requirements, and we confirm the level of detail and the software before modeling begins.

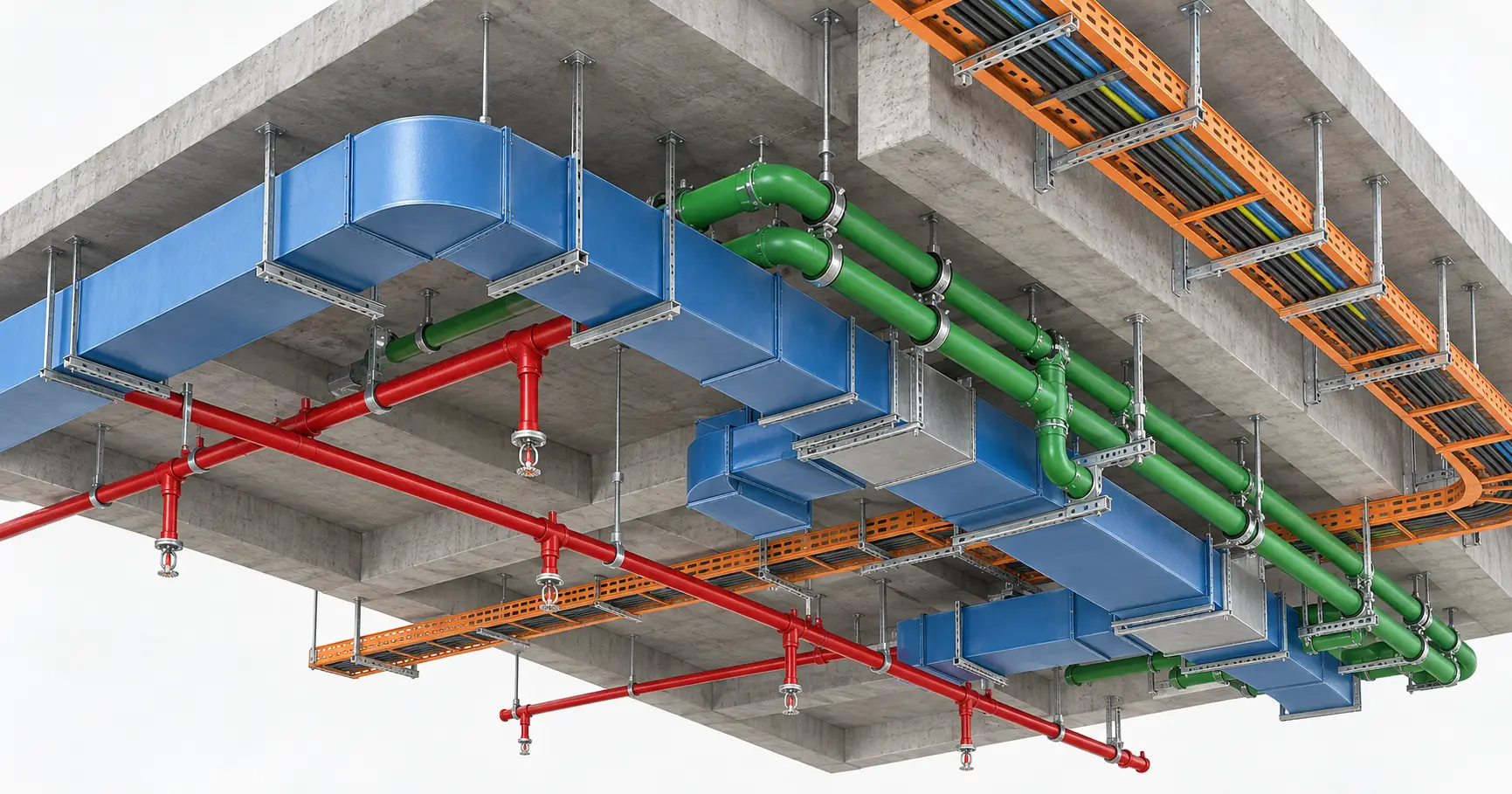

2. Build the MEP model. Each system is modeled with real sizes, routes and equipment. Our MEP 3D modeling services follow this step.
3. Run clash checks. The MEP systems are tested against each other and against structure and architecture. See how this works in our clash detection and coordination service.
4. Resolve and review. Conflicts are solved in the model, and a senior coordinator reviews the result.
5. Generate the drawings. Plans, sections, schedules and tags are produced directly from the model, so every sheet matches the agreed design.
6. Issue and update. When something changes, the model is updated and the affected sheets are reissued with a clear revision note.

What to Check Before You Approve a Set of Shop Drawings

Does every system appear, including fire protection and small services?
Are dimensions and heights tied to fixed reference points?
Are access and clearance zones for equipment shown?
Do the drawings match the latest architectural and structural issue?
Are sleeves and penetrations located and coordinated with structure?
Is there a revision log that explains what changed?

Sign-off always stays with your engineers and certifiers. A good drawing set makes their review faster by removing the conflicts before they see it.

Common Mistakes to Avoid

Starting drawings before the base architectural and structural information is stable.
Using different levels of detail for different trades.
Treating fire protection as an afterthought. Sprinkler routes need space early, which is why we coordinate our fire protection modeling with the rest of the MEP model.
Not tracking revisions, so the site builds from an old sheet.

How BIM365 Works

BIM365 is a BIM outsourcing company with 6+ years of experience delivering MEP BIM modeling, architectural and structural modeling, Scan to BIM, fire protection modeling, clash coordination and 4D simulation. We work with consultants and contractors in Australia, the United States, the United Kingdom, Europe and the Middle East, and most of our work is covered by NDAs. You can read more about our approach on our How We Work page. If you want to see why modeling and design work best together, read our guide on MEP consultancy with BIM and design under one roof.

Frequently Asked Questions

What is the difference between shop drawings and design drawings?
Design drawings show the intent: what systems the building needs and roughly where they go. Shop drawings show the build: exact routes, heights, supports and connections that installers follow. Shop drawings are prepared after the design is set and reviewed by the design team before installation.

What is the difference between shop drawings and as-built drawings?
Shop drawings are made before installation to show how the work will be built. As-built drawings are made after installation to record what was actually built, including any site changes. Both are useful, and a coordinated model makes the second set much easier to produce.

Can shop drawings be produced from a model made by another team?
Yes, if the model is complete and coordinated. We check the incoming model first and agree the level of detail. If the model is incomplete, we raise the gaps early so the drawings are not built on guesses.

How are shop drawings reviewed before installation?
The drawings are submitted to the design team, who check that they follow the design intent and fit with the other trades. Comments are returned, the drawings are revised and the set is reissued until it is accepted. Approval stays with your engineers and certifiers.
