The Simple Difference

CAD — Computer Aided Design — produces 2D drawings. Lines, dimensions and annotations on a digital page. Fast to learn, widely understood, but fundamentally limited.

BIM — Building Information Modelling — produces intelligent 3D models. Every element contains real data — dimensions, materials, costs, schedules, performance values and system relationships — all connected and coordinated across every discipline on your project.

One is a digital drawing board. The other is a digital building.

7 Reasons BIM Outperforms CAD on Australian Projects

1. Coordination Across All Disciplines

CAD drawings from different consultants sit in separate files. Clash detection means printing drawings and overlaying them manually — slow, unreliable and prone to human error.

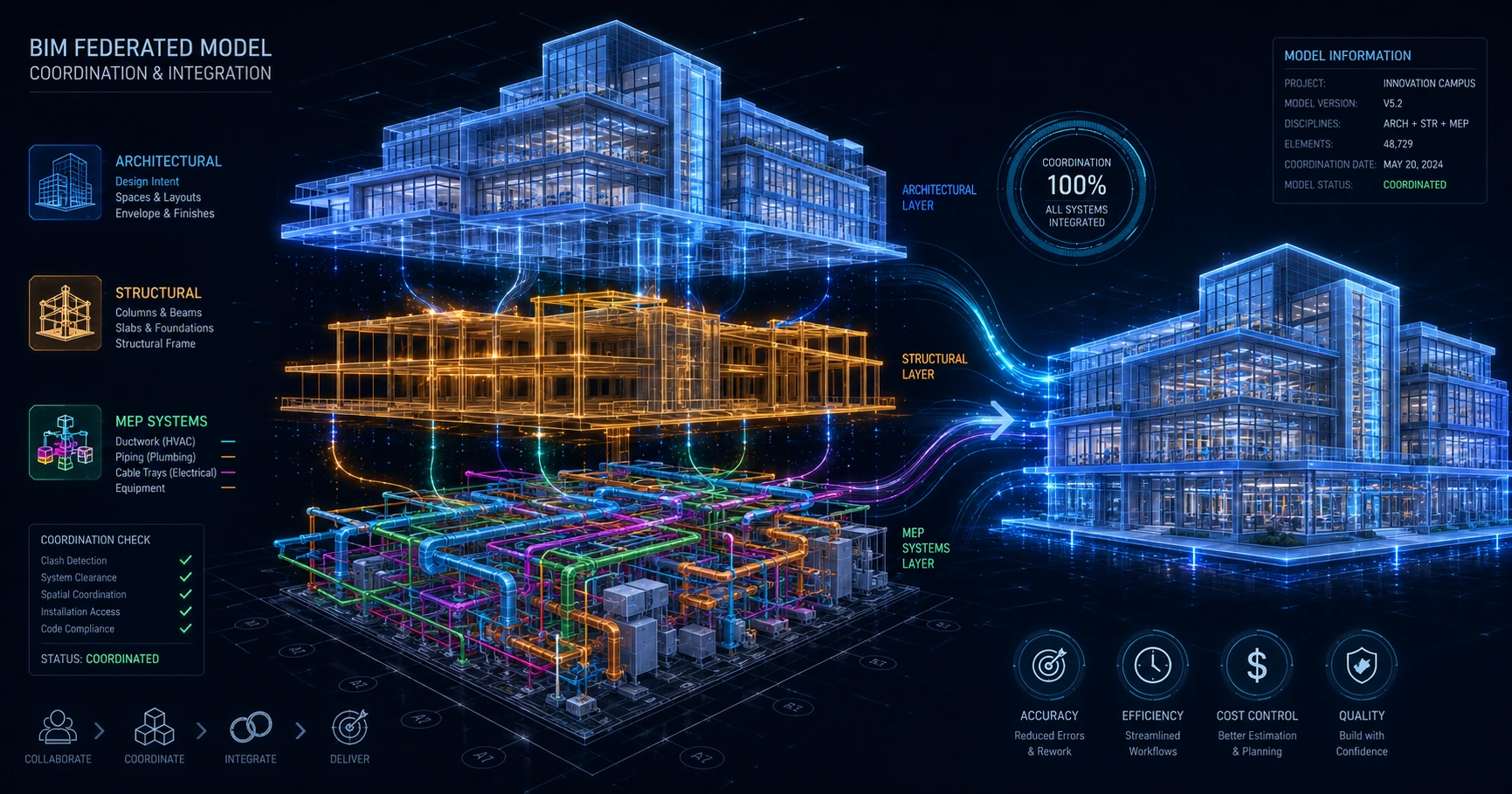

BIM federated models combine architectural, structural and MEP disciplines into one coordinated environment. Clashes are detected automatically and resolved digitally before construction begins.

→ Result: fewer RFIs, less rework, smoother site delivery

2. Automatic Documentation Updates

In CAD, changing a wall means updating the floor plan, every section that cuts through it, every elevation that shows it and every schedule that references it — manually, one by one.

In BIM, change the wall once in the model and every plan, section, elevation and schedule updates automatically across the entire document set.

→ Result: faster design changes, fewer documentation errors, significant time saving

3. Real Data Inside Every Element

A CAD wall is a line with a dimension. A BIM wall knows its material, thickness, fire rating, thermal performance, acoustic rating, cost and NCC compliance status.

That data drives compliance checking, cost estimation, energy modelling and facility management — all from the same model.

→ Result: smarter design decisions, faster approvals, better asset data at handover

4. Clash Detection Before Construction

CAD offers no built-in clash detection. Coordination conflicts between disciplines are discovered on site — at maximum cost and disruption.

BIM clash detection identifies every hard clash, soft clash and workflow conflict digitally before a single slab is poured.

→ Result: up to 20% reduction in construction rework costs

5. 4D Construction Simulation

CAD cannot link to a construction programme. Sequencing and staging must be managed separately through spreadsheets and Gantt charts with no visual connection to the design.

BIM models link directly to construction programmes — animating the build sequence visually and identifying scheduling conflicts before they affect the project.

→ Result: better programme planning, clearer client communication, fewer delays

6. ISO 19650 and NCC Compliance

Australian government projects, tier-one contractors and major developers increasingly require ISO 19650 compliant BIM deliverables. CAD workflows cannot meet this requirement.

BIM structured under ISO 19650 provides a Common Data Environment, traceable information approvals and standardised naming conventions — meeting every compliance requirement from design through to handover.

→ Result: tender ready deliverables, compliance built in not bolted on

7. Facility Management and Digital Twin Handover

CAD drawings handed over at practical completion are largely useless for facility management. They are out of date within months as building changes accumulate.

BIM as-built models and COBie data packages give building owners a living digital record — asset registers, maintenance schedules, system data and spatial information all in one place.

→ Result: lower facility management costs, faster maintenance response, longer asset life

When Is CAD Still Appropriate?

CAD still has a place in construction — particularly for:

→ Simple single discipline documentation → Fabrication shop drawings for specific trades → Minor alterations where full BIM is not cost effective → Legacy projects where existing documentation is CAD based

For any project involving multiple disciplines, coordination requirements or compliance obligations — BIM is the correct choice every time.

BIM Adoption in Australia — Where the Market Stands in 2026

Australia is one of the most BIM-mature construction markets globally. Over 70% of Australian architectural firms use BIM for most of their projects. Government infrastructure, healthcare and education sectors increasingly mandate BIM as a standard project requirement.

The question for Australian construction professionals in 2026 is no longer whether to adopt BIM — it is whether your current BIM capability is strong enough to meet what the market now demands.
