BIM LOD 300 to LOD 500 — Complete Guide for Australian Construction Projects
What Is LOD in BIM?
LOD — Level of Development — defines how much information a BIM element contains at each project stage.
It answers one simple question:
How much can you rely on this element for design, coordination, construction or facility management?
Higher LOD means more detail, more data and more confidence in the model. But higher LOD also means more time and cost to produce — so specifying the right LOD at the right stage matters enormously.
LOD 300 — Design Development
What it means: Elements are modelled with accurate size, shape, location, quantity and orientation. Sufficient for multidiscipline coordination and documentation.
What is included: → Accurate dimensions confirmed → Material and system type specified → Spatial coordination possible → Documentation extraction ready → Clash detection reliable at this stage
Best used for: → Design development stage → Consultant coordination and clash detection → Planning and approval documentation → Cost estimation with reasonable accuracy
Example: An HVAC duct at LOD 300 has confirmed dimensions, insulation allowance, routing and connection points — enough to coordinate with structure and architecture confidently.
LOD 350 — Construction Coordination
What it means: Everything in LOD 300 plus interfaces and connections with other building systems modelled explicitly.
What is included: → Support and hanger locations → Connections to adjacent elements → Clearance zones for installation and maintenance → Contractor coordination requirements
Best used for: → Construction coordination between trades → Subcontractor shop drawing production → Prefabrication planning → Final clash detection before construction begins
Example: An HVAC duct at LOD 350 includes hanger rod positions, insulation thickness, flange connections and maintenance access clearance zones — ready for fabrication coordination.

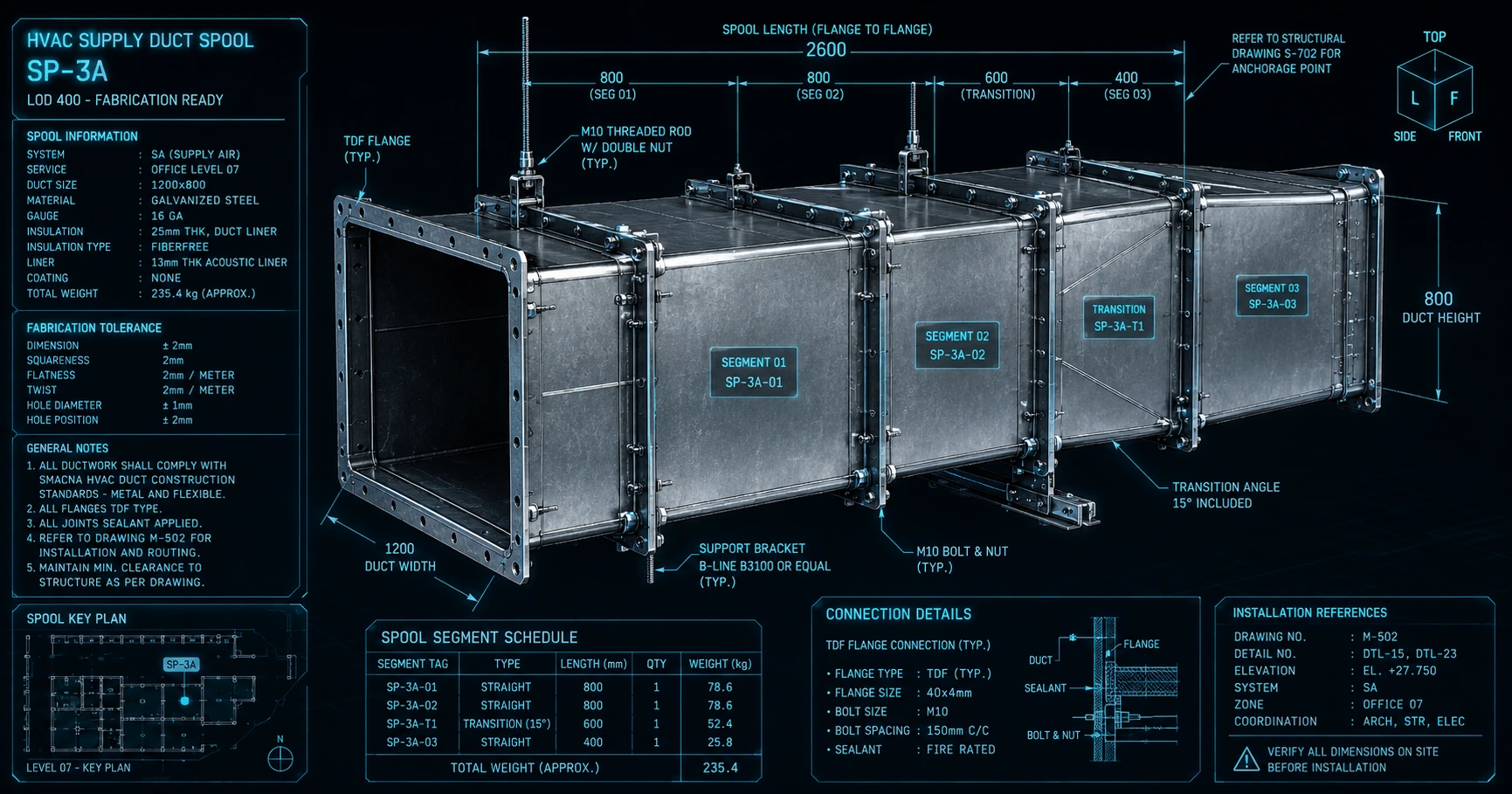

LOD 400 — Construction Ready
What it means: Elements modelled to fabrication and installation level detail. The model can be used directly for construction and manufacturing.
What is included: → Full fabrication dimensions → Installation methodology reflected in model → Shop drawing level detail → Spool drawings and MTO extraction possible → Manufacturer specific product data
Best used for: → Prefabricated MEP assemblies → Structural steel fabrication → Mechanical equipment installation → Spool drawing and MTO production
Example: An HVAC duct at LOD 400 is modelled as a specific manufacturer product with exact flange types, bolt patterns, spool lengths and installation sequence — ready to fabricate and install directly.

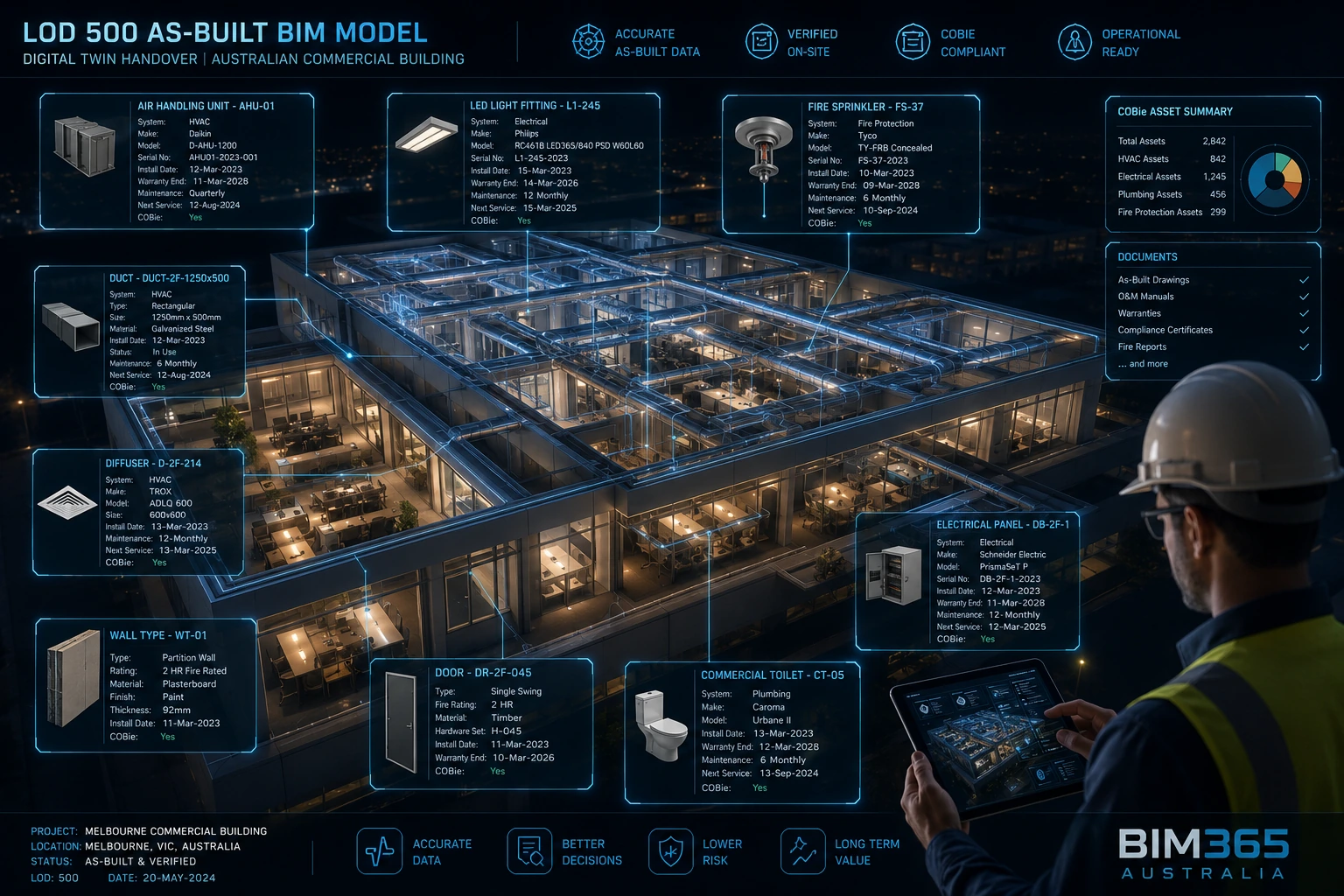

LOD 500 — As-Built Record
What it means: The model reflects exactly what was built on site — verified against actual construction. This is the handover model for facility management.
What is included: → All as-built changes from construction incorporated → Actual installed product data → Asset register data embedded → COBie data for facility management systems → Maintenance schedules and warranty information linked
Best used for: → Practical completion handover → Facility management and asset maintenance → Digital twin foundation → Building owner operational planning
Example: An HVAC duct at LOD 500 reflects its exact installed position including any site variations, carries the manufacturer serial number, warranty expiry date, maintenance schedule and next service date — all accessible directly from the model.
LOD Summary Table
| LOD | Stage | Primary Use | Key Benefit |
|---|---|---|---|
| LOD 300 | Design Development | Coordination and documentation | Clash detection ready |
| LOD 350 | Construction Coordination | Trade coordination and prefab | Zero clashes before site |
| LOD 400 | Construction | Fabrication and installation | Build directly from model |
| LOD 500 | Handover | Facility management | Living asset record |
Which LOD Does Your Australian Project Need?
Most Australian projects follow this LOD progression:
→ Schematic design — LOD 100 to 200 → Design development — LOD 300 → Construction documentation — LOD 350 → Construction — LOD 400 for prefabricated elements → Handover — LOD 500 as-built record
Not every element needs LOD 400. Specifying LOD 400 across an entire model when only prefabricated MEP assemblies need it wastes significant budget.
A good BIM consultant helps you specify LOD correctly by element and by stage — saving time and cost without reducing model quality.
LOD and ISO 19650 in Australia
ISO 19650 requires LOD to be defined in the BIM Execution Plan before modelling begins. Every element type must have a confirmed LOD target for each project stage — agreed between the client, lead consultant and BIM coordinator.
NATSPEC BIM guidelines align LOD requirements with Australian documentation stages — ensuring your model meets both international standards and local project expectations.
BIM365 manages LOD specification as part of every project BIM Execution Plan — so your team always knows exactly what the model contains and what it can be relied upon for.
BIM365 LOD Delivery Across Australia
We deliver BIM models from LOD 300 through LOD 500 for projects across Sydney, Melbourne, Brisbane, Perth and Adelaide — covering architectural, structural and full MEPF disciplines.
→ LOD 300 — design coordination and documentation → LOD 350 — construction coordination and clash detection → LOD 400 — fabrication level MEP spool drawings and MTO → LOD 500 — as-built handover with COBie data
