MEP Clash Detection in Australia
MEP Clash Detection in Australia:
How BIM Saves Contractors Time & Money
Ducts through beams. Conduit clashing with sprinklers. Pipes running into structural walls. These are real problems Australian contractors face on site — and they are entirely avoidable with proper BIM clash detection before construction starts.
In This Article
- What is MEP Clash Detection?
- 3 Types of Clashes Australian Contractors Face
- The Real Cost of Unresolved Clashes on Site
- BIM Coordination vs Traditional 2D Process
- Step-by-Step: How the BIM Clash Detection Process Works
- Why It Matters: ISO 19650 & NCC in Australia
- Who Needs MEP BIM Coordination in Australia?
- Frequently Asked Questions
What is MEP Clash Detection?
MEP stands for Mechanical, Electrical, and Plumbing — the three major building services systems that run through the ceiling, walls, and floors of every commercial, residential, and industrial building. On most Australian projects, fire protection (FP) is included too, making it MEPF.

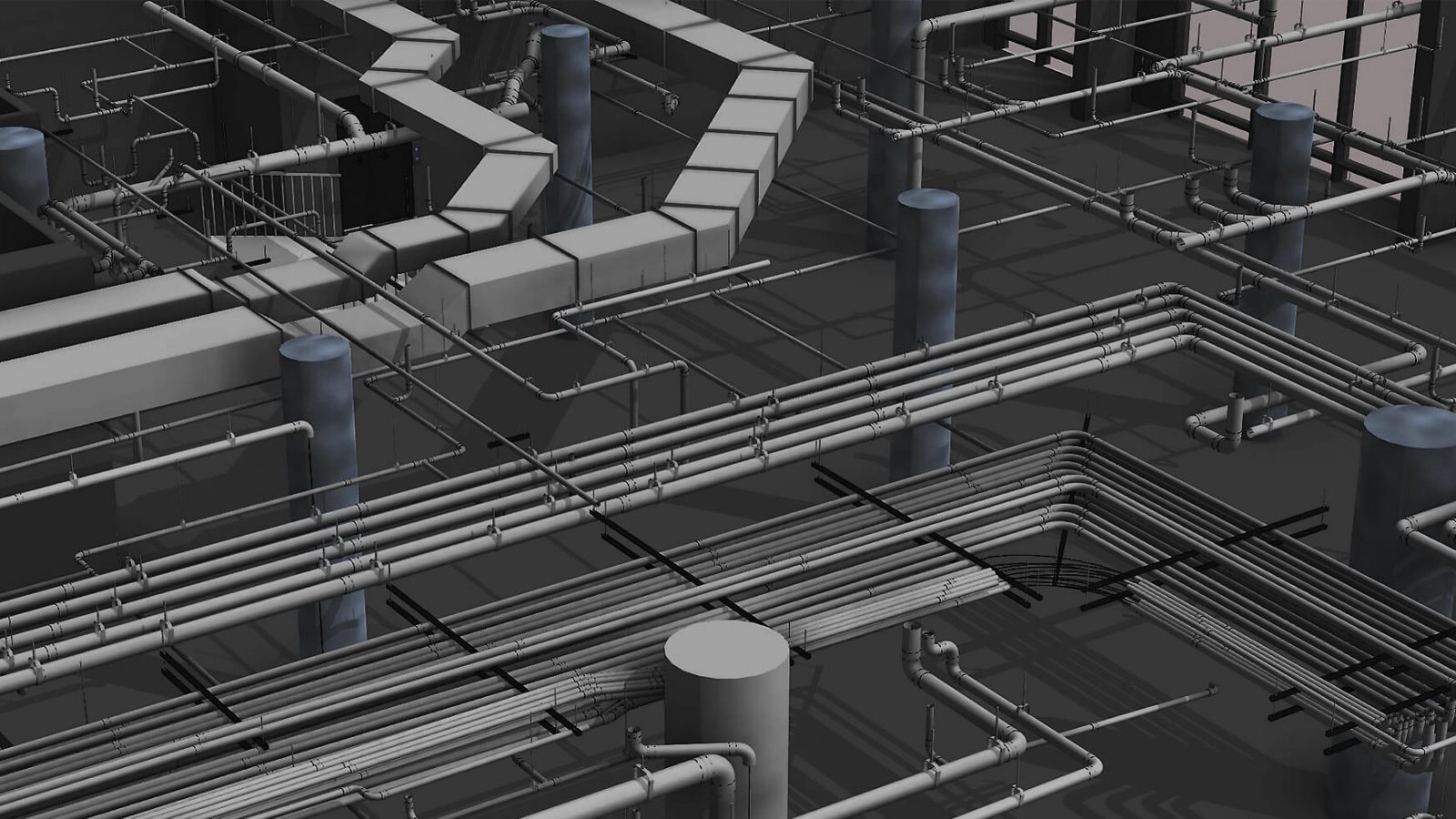

MEP clash detection is the process of using BIM software — typically Autodesk Navisworks — to combine all discipline models (architectural, structural, and MEP) into a single federated 3D model, then run automated checks to find every location where systems physically conflict with each other.
Simple Definition
A "clash" in BIM is any point where two building elements occupy the same space — like a duct running through a structural beam, or conduit conflicting with a sprinkler pipe. Clash detection finds these conflicts in the digital model before they become expensive problems on site.
Without BIM clash detection, these conflicts are discovered by tradespeople on site — at which point fixing them requires stopping work, redesigning routes, ordering new materials, and coordinating again. That is expensive. That is avoidable.
3 Types of Clashes Australian Contractors Face
Not all clashes are the same. Understanding the three types helps contractors and MEP consultants prioritise what to look for during coordination.
Hard Clash
Two elements physically occupying the same space. Example: an HVAC duct passing through a concrete structural beam. Cannot be built as-designed — must be resolved.
Soft Clash
Elements don't collide but violate required clearance. Example: a pipe too close to an electrical panel for safe maintenance access. A common NCC compliance issue.
Workflow Clash
Scheduling conflict in construction sequence. Example: electrical rough-in overlapping with mechanical installation in the same ceiling zone on the same week.
Hard clashes are the most critical — they must be resolved before construction. Soft clashes are especially important in Australian projects because the NCC (National Construction Code) sets minimum clearance requirements for access, maintenance, and safety around MEP equipment.
The Real Cost of Unresolved Clashes on Site
Here are the numbers every Australian project manager and contractor needs to know:
10
×
More expensive to fix a clash on site vs during design coordination
40%
Reduction in site rework when BIM clash detection is used properly
300+
Clashes found in a typical medium commercial project before coordination
When a clash is caught during design, it is fixed in minutes by rerouting a duct in the model. When the same clash is found on site, it means stopping a crew, issuing a variation, redesigning the route, waiting for revised drawings, reordering materials, and rescheduling installation. That is days of delay — not minutes.
"Identifying clashes during the design stage directly improves cost efficiency and shortens project timelines. HVAC systems usually occupy the largest ceiling space — BIM helps teams test routing before fabrication begins, preventing fabricated ducts from becoming unusable on site."
For Australian contractors working on tight NCC-compliant ceiling spaces — especially in apartments, hospitals, and commercial fit-outs across Sydney, Melbourne, and Brisbane, Perth, and regional Australia — this coordination is not optional. It is essential.
BIM Coordination vs Traditional 2D Process
Here is how the two approaches compare on every aspect that matters to an Australian contractor or MEP consultant:
| Aspect | Traditional 2D Process | BIM Clash Detection |
|---|---|---|
| How clashes are found | On site, by trades | In the model, before construction |
| Cost to resolve | 10× more expensive | Minimal — model edit only |
| Delay risk | High — work stoppages | Low — resolved digitally |
| NCC / ISO 19650 compliance | Hard to demonstrate | Documented & auditable |
| Prefabrication support | Not reliable | Yes — fabrication-ready models |
| Shop drawings | Manual, error-prone | Generated from coordinated model |
Step-by-Step: How the BIM Clash Detection Process Works
Whether you are an MEP contractor, builder, or architect — this is the coordination process BIM365 follows for every Australian project:
Receive Discipline Models
Architect provides the architectural Revit model. Structural engineer provides the structural model. MEP contractor provides the MEP model — or BIM365 creates it from your 2D drawings or PDF documents.
Federate Models in Navisworks
All discipline models are combined into a single federated NWD file using Navisworks or BIM 360 / Autodesk Construction Cloud (ACC). Coordinate systems are aligned and verified across every discipline.
Run Automated Clash Tests
Clash tests are configured with project-specific rules and clearance tolerances. Hard, soft, and workflow clashes are all detected and catalogued. A typical commercial project yields 200–500+ initial clashes before coordination.
Triage & Prioritise
Not all 300 clashes are equally critical. BIM365 triages them — hard clashes in primary service routes are resolved first. Duplicates and low-priority clashes are filtered. A clear, manageable coordination issue log is produced.
Coordinate & Resolve
Resolution options are developed for each clash — rerouting ducts, adjusting pipe slopes, relocating conduit. Changes are made in Revit and re-tested until a clash-free model is achieved.
Issue Coordinated Drawings & Reports
Clash-free MEP coordination drawings, section views, and clash reports are issued to the site team. Shop drawings and spool drawings are extracted directly from the coordinated model.
Result
Trades arrive on site with clash-free, coordinated drawings. Installation is faster, rework is minimal, and the project stays on schedule and within budget.
Why It Matters: ISO 19650 & NCC in Australia
Australian construction is rapidly moving towards mandatory BIM requirements, particularly on government-funded and large commercial projects. Two standards drive this:
ISO 19650
The international standard for BIM information management. Australian government agencies increasingly require projects to be delivered in accordance with ISO 19650, including the use of IFC (open BIM) formats and documented BIM Execution Plans (BEPs).
NCC
Australia's National Construction Code sets minimum clearance, access, and safety requirements around MEP systems. BIM clash detection — especially soft clash checks — is the most reliable way to verify NCC compliance at design stage.
Heads Up for Australian Contractors
Australian government agencies are progressively requiring ISO 19650-aligned BIM deliverables and openBIM IFC formats on publicly funded projects. Starting to align your processes now puts you ahead of competitors who will scramble later.
Who Needs MEP BIM Coordination in Australia?
BIM clash detection delivers the biggest value to:
MEP Contractors & Subcontractors
HVAC, electrical, plumbing, and fire protection trades working in coordinated ceiling spaces on commercial and residential projects.
Mechanical & Electrical Consultants
Design firms who want to issue coordinated, clash-free MEP documentation and reduce RFIs from site.
General Contractors & Builders
Head contractors managing multiple subcontractors who need a single source of truth for MEP routing and ceiling coordination.
Architects
Design firms producing BIM-coordinated documentation as part of their CD package and reducing design liability.
Developers & Project Managers
Asset owners commissioning new builds, fit-outs, or healthcare projects where ceiling space is at a premium.
BIM365 serves all Australian states — fully remote, fully digital:
